SP-94000

Idol Janshi Suchie-Pai II
for Jaleco Mega System 32

Idol Janshi Suchie-Pai II

*Suchie Pai II Arcade Game.

requires Jaleco Mega System 32 mother board.

Doesn't support joy stick.(uses buttons for each tiles)

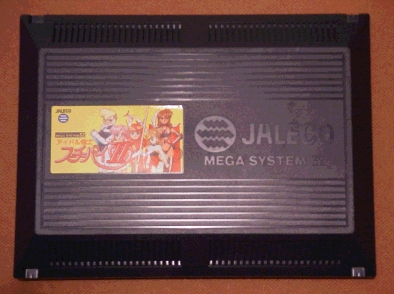

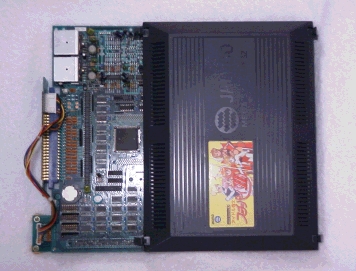

Mega System 32 Mother board + Suchie-Pai 2 cartridge + Jaleco connector.

motherboard itself is JAMMA compatible.
however...

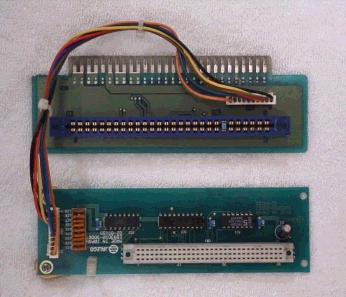

Jaleco Mahjong connector.

without this device, Suchie-Pai 2 won't even boot(just blank screen).

This converter redirect JAMMA pinout into Jaleco pin format.
so...

to use with supergun, you need to make Jaleco to JAMMA converter

more scan

Insert 1
Insert 2

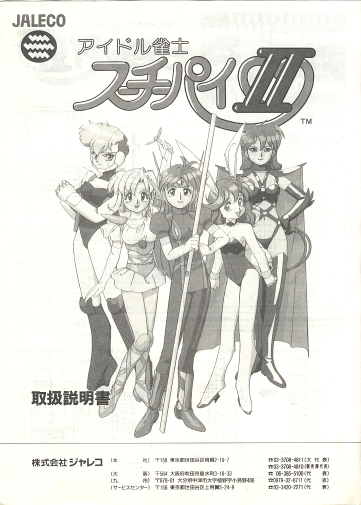

Instruction paper - cover

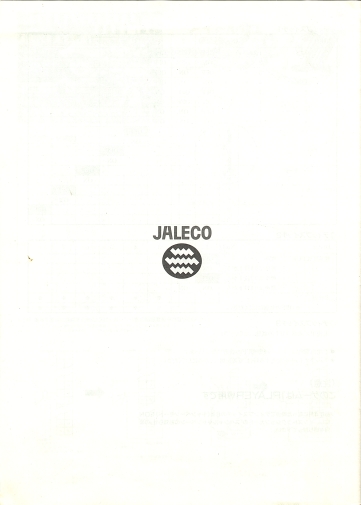

Instruction paper - back

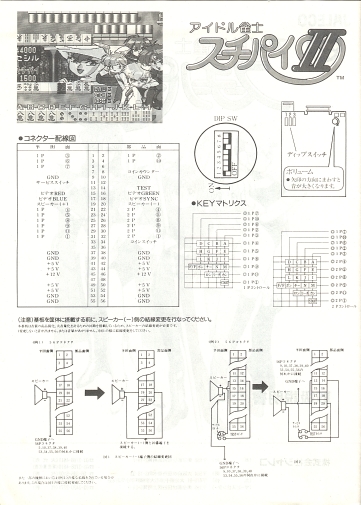

Instruction paper - wire diagram

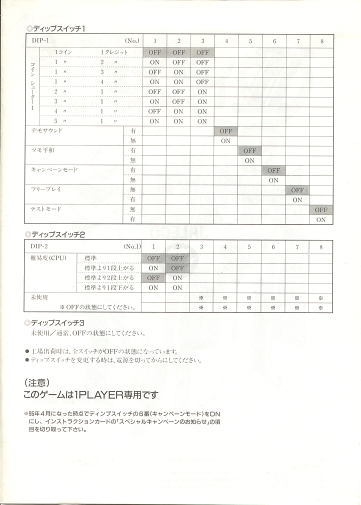

Instruction paper - dip switch
Jaleco Mahjong format Connector

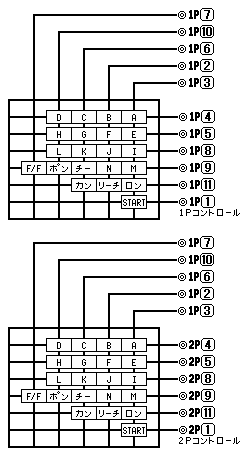

 Key Matrix

Dip1

1

2

3

4

5

6

7

8
Coin Shooter 1 1 Coin 1 Credit

OFF

OFF

OFF


1 Coin 2 Credit

ON

OFF

OFF


1 Coin 3 Credit

OFF

ON

OFF


1 Coin 4 Credit

ON

ON

OFF


2 Coin 1 Credit

OFF

OFF

ON


3 Coin 1 Credit

ON

OFF

ON


4 Coin 1 Credit

OFF

ON

ON


5 Coin 1 Credit

ON

ON

ON


Demo Sound

Yes



OFF



No



ON


Tsumo Pinfu

Yes



OFF



No



ON


Campaign Mode

Yes



OFF



No



ON


Free Play

No



OFF



Yes



ON


Test Mode

No



OFF

Yes



ON

Dip2

1

2

3

4

5

6

7

8
Difficulty Normal

OFF

OFF


Hard

ON

OFF


Hardest

OFF

ON


Easy

ON

ON


Unused

  *

  *

  *

  *

  *

  *


  *

  *

  *

  *

  *

  *

Screen Shots

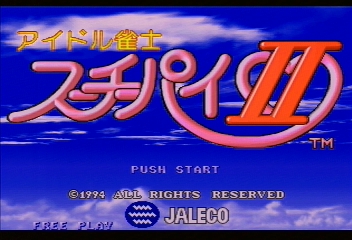

Title screen

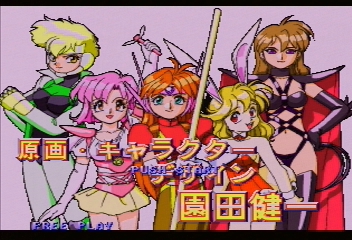

Character design by Sonoda Kenichi.
Suchie-Pai series' best feature Hisatsu Suchie Stick!!

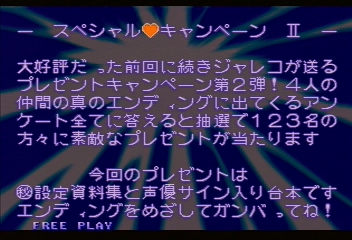

Special Campaign mode.
this special contest advertisement screen pops up between demo.
After getting the true ending with 4 helpers and and answer something..blah blah...to get signed script...blah..blah...
the campaign has ended long ago..x_x

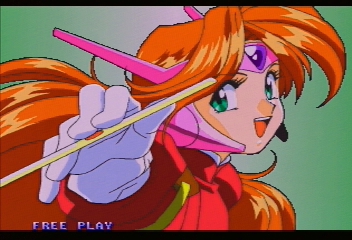

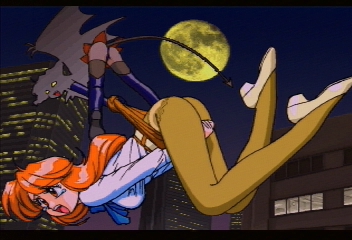

Opening demo

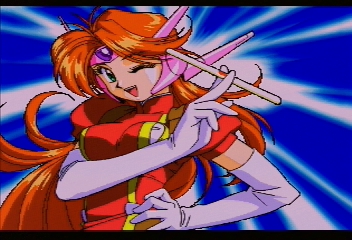

Suchie Flash!!

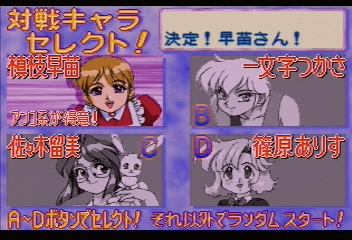

Character Selection.
First opponent

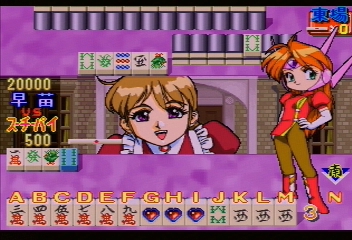

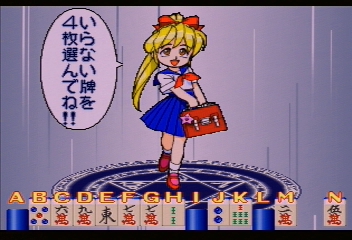

Game

There is 3 second time limit, so it is much much harder than home version.

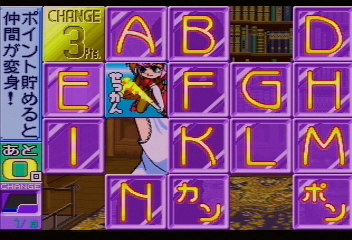

Panel match.

You play panel match game between rounds.
You get the item when you match 2 of them.
When you match all the panel, you win the opponent.(game gets super hard later, panel match may be the only way to beat boss)
When you get special syoukan item from panel match, you will have chance to replace some of your tiles before the next match.

note : Yuki has yellow hair.
